10 × 500 VA — 5 kW pack · IP68 · Zero-Export Gateway included

EAD MO-S1/Pro Micro-Inverter — Pack of 10 + Zero-Export Gateway

Ready-to-deploy 5 kW residential kit — 10 single-panel micro-inverters + 200 A anti-injection gateway

A complete residential kit: 10 EAD MO-S1/Pro single-panel micro-inverters (500 VA each) delivering 5 kW total, paired with the 200 A Zero-Export Gateway. Single-stage cyclo topology for 2.5× reliability, 97% CEC efficiency, mesh Wi-Fi commissioning and unconditional 25-year warranty. Sold exclusively as a pack of 10 for premium residential rooftops.

10 × 500 VA — 5 kW total per pack

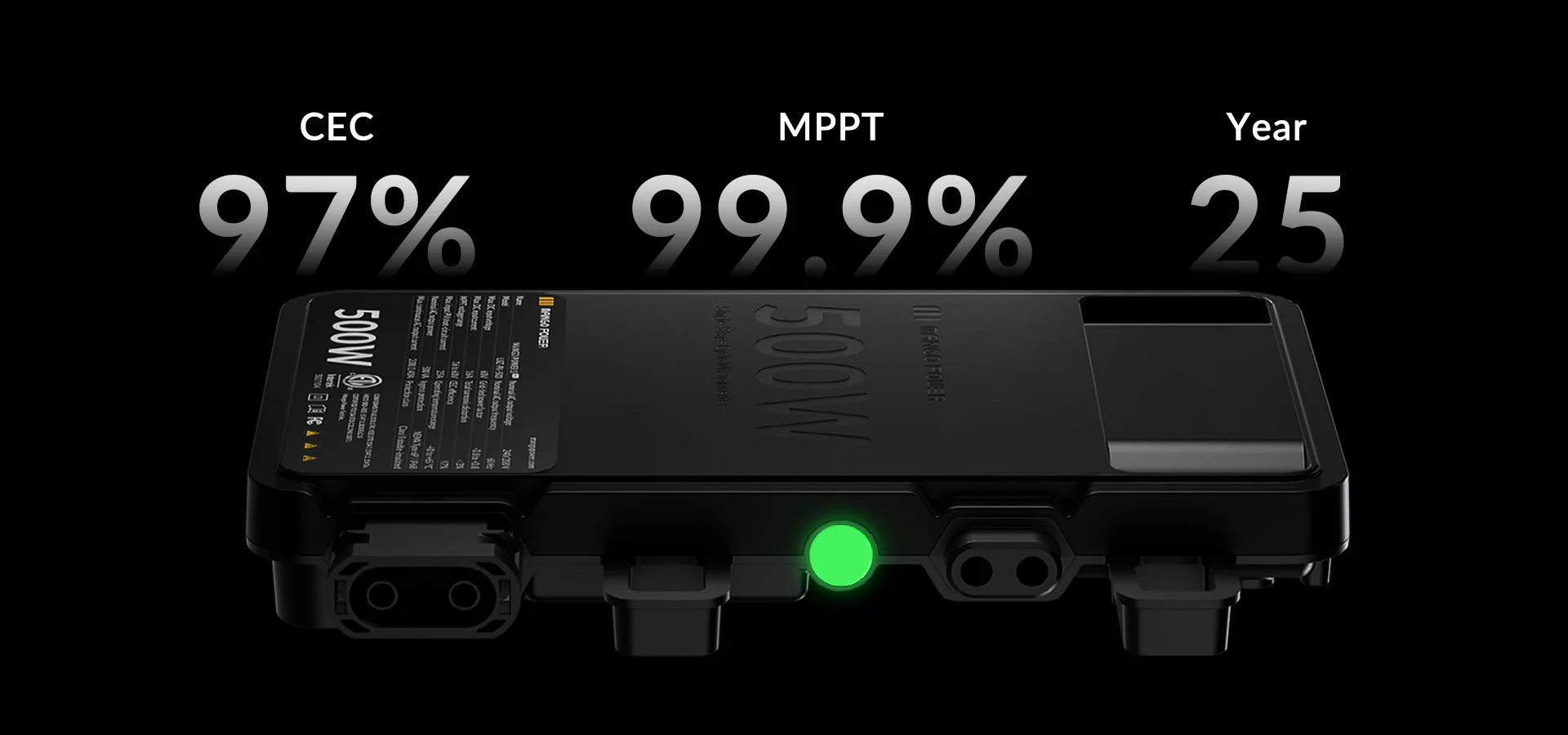

97% CEC efficiency · 99.9% MPPT
IP68 · NEMA Type 6P — 25-year warranty
200 A Zero-Export Gateway included

Pack ×10 · 5 kWIP6825-year warranty

Request a quote for this product Contact us Download the datasheet

Prices shared on simple quote request · Reply within 24–48 hours.

Highlights

Key day-to-day benefits.

200 A Zero-Export Gateway included — no separate smart meter to invoice

Whole-home energy monitoring: consumption, PV generation and grid flow in real time

200 ms anti-backflow protection for optimised plug-in solar use

100 μs rapid shutdown (RSD) — 300,000× faster than the strictest safety codes

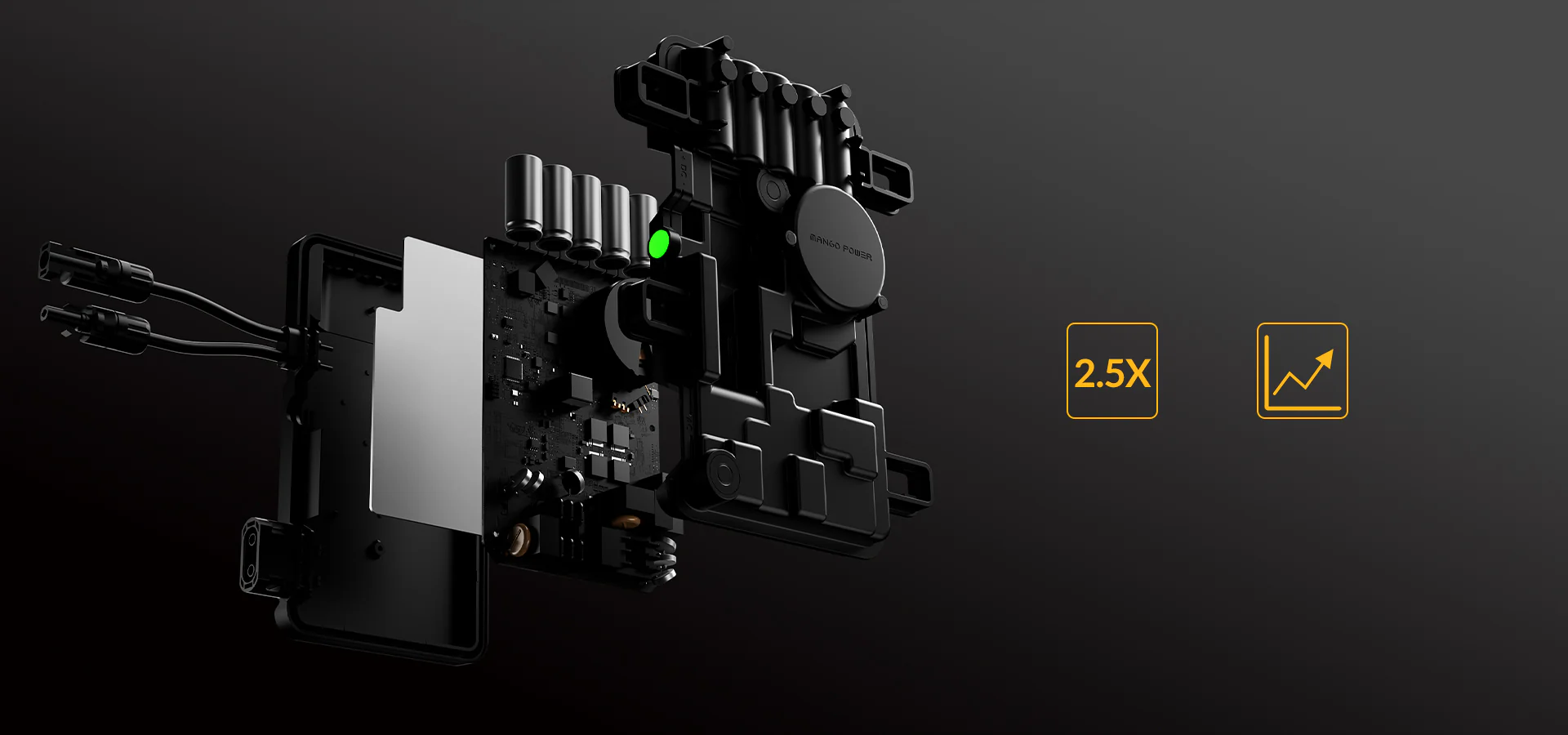

Single-stage cyclo topology: 30% fewer components, 2.5× higher reliability

NEMA Type 6P hermetically sealed — dustproof, waterproof, fanless (-40 °C to +65 °C)

Plug & Play mesh Wi-Fi — one-click commissioning, dedicated app monitoring

Versus the competition

EAD MO-S1/Pro Micro-Inverter — Pack of 10 + Zero-Export Gateway — 5 kW residential pack

Sold exclusively in a ready-to-deploy pack of 10, the EAD MO-S1/Pro kit offers three decisive advantages on the 5 kW residential segment:

200 A Zero-Export Gateway included

No separate smart meter to invoice. The gateway is factory-paired with the 10 micro-inverters and enables 200 ms anti-backflow protection out of the box.

IP68 + NEMA Type 6P — highest protection in the segment

Hermetically sealed and fanless from -40 °C to +65 °C. A decisive argument for coastal, agricultural or highly exposed roofs.

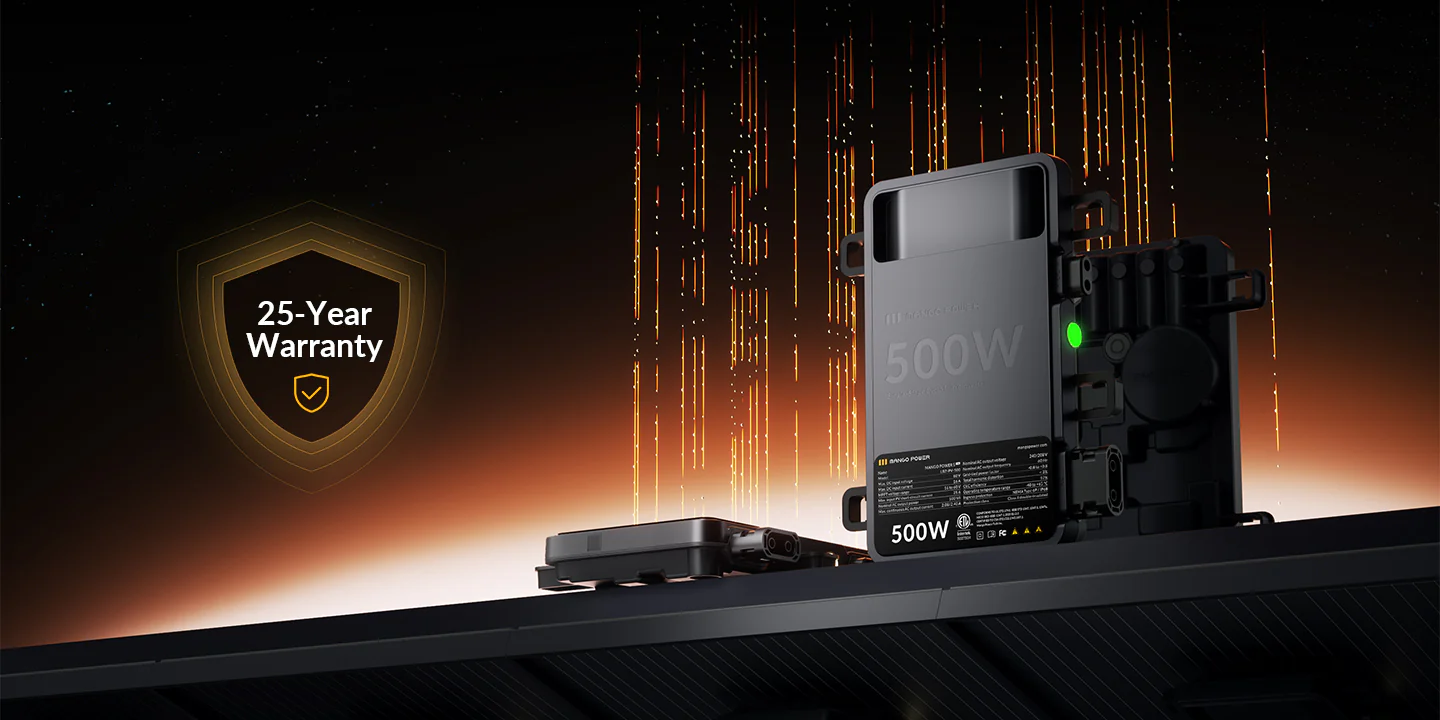

25 years of unconditional warranty

Matched to the panel lifespan, with a 219,000-hour design life — double the standard market warranty.

Datasheet

Full specifications.

Pack content	10 × MO-S1/Pro micro-inverters + 1 × 200 A Zero-Export Gateway
Nominal AC power (per unit)	500 VA — 230 V / 50 Hz
Total pack power	5,000 VA (5 kW)
Compatible panels	1 panel per unit — 400 to 670 W+
MPPT	1 tracker per unit (16–60 V, peak 36–55 V) — 99.9% efficiency
Max input voltage	60 V — start-up 22 V
Max / short-circuit current	16 A / 25 A
CEC efficiency	97%
Power factor	0.99 (adjustable 0.8 leading – 0.8 lagging)
Total harmonic distortion	< 3%
Rapid shutdown (RSD)	100 μs response time
Zero-Export Gateway	200 A integrated — no separate smart meter
Anti-backflow response	< 200 ms
Communication	Plug & Play mesh Wi-Fi
Protection	NEMA Type 6P / IP68 — hermetically sealed, fanless
Cooling	Natural convection
Night consumption	< 50 mW
Dimensions / weight (per unit)	221.5 × 129.0 × 32.5 mm — 1.2 kg
Operating / storage temperature	-40 to +65 °C / -40 to +85 °C
Altitude	Up to 4,000 m
Design life	219,000 hours
Certifications	CEC Listed · CA Rule 21 (UL 1741-SA) · IEEE 1547:2018 (UL 1741-SB) · CSA C22.2
Warranty	25 years, unconditional
Technology	Mango Power S Pro — exclusive to EAD in France

Technical data is provided for guidance only and may change without notice.

Good to know

Delivery, warranty & after-sales.

European delivery

Stock available in Europe for most references. Lead times and terms confirmed on quote.

Certified & guaranteed

CE certification, manufacturer warranty and technical documentation shipped with every product.

After-sales & spare parts

Our team handles technical after-sales support and the supply of spare parts.

The price? The price of this product is shared after we receive your quote request. Our team replies with a personalised price, the detailed technical sheet and the delivery terms.
